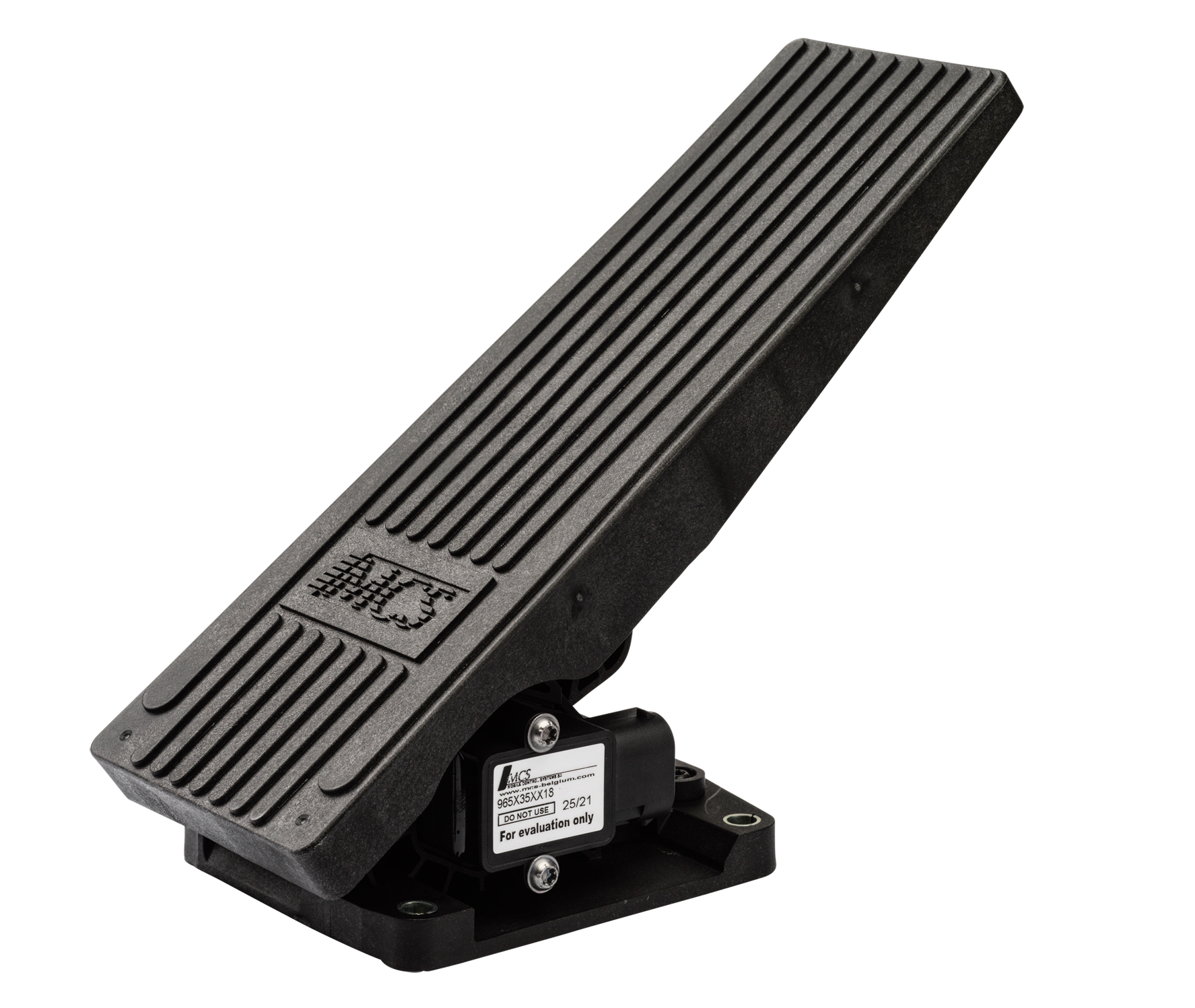

Electronic Throttle Pedal 965 000 series

Product information

Characteristics

The 965 000 series of electronic throttle pedals has various characteristics suitable for mobile equipment:
– Rest positions: 30°, 35° or 45°
– Travel angle: 18° or 22°
– Two “built-in” return springs
– Water and dust ingress up to IP69K
– Storage temperature: -40°C to +125°C
– Operating temperature: -40°C to +85°C
– Connector: AMP – 6 pins

Standards

– FMVSS 124
– FMVSS 302 (ECE R118)
– 72/245/EEC
– ECE R10.06*
– E13 report
– ISO 26262 part 5 – ASIL C (SEooC)*

*only for APS Dual 5V and APS CAN sensors

Output signal factory config.

The output values are factory programmable and hence can be adapted to the customer’s specifications.
Analogue; PWM; IVS; Current; CAN J1939; CANopen

See Output Signal Configurations

Options

– Different treadle plates available
– Different mounting plates available

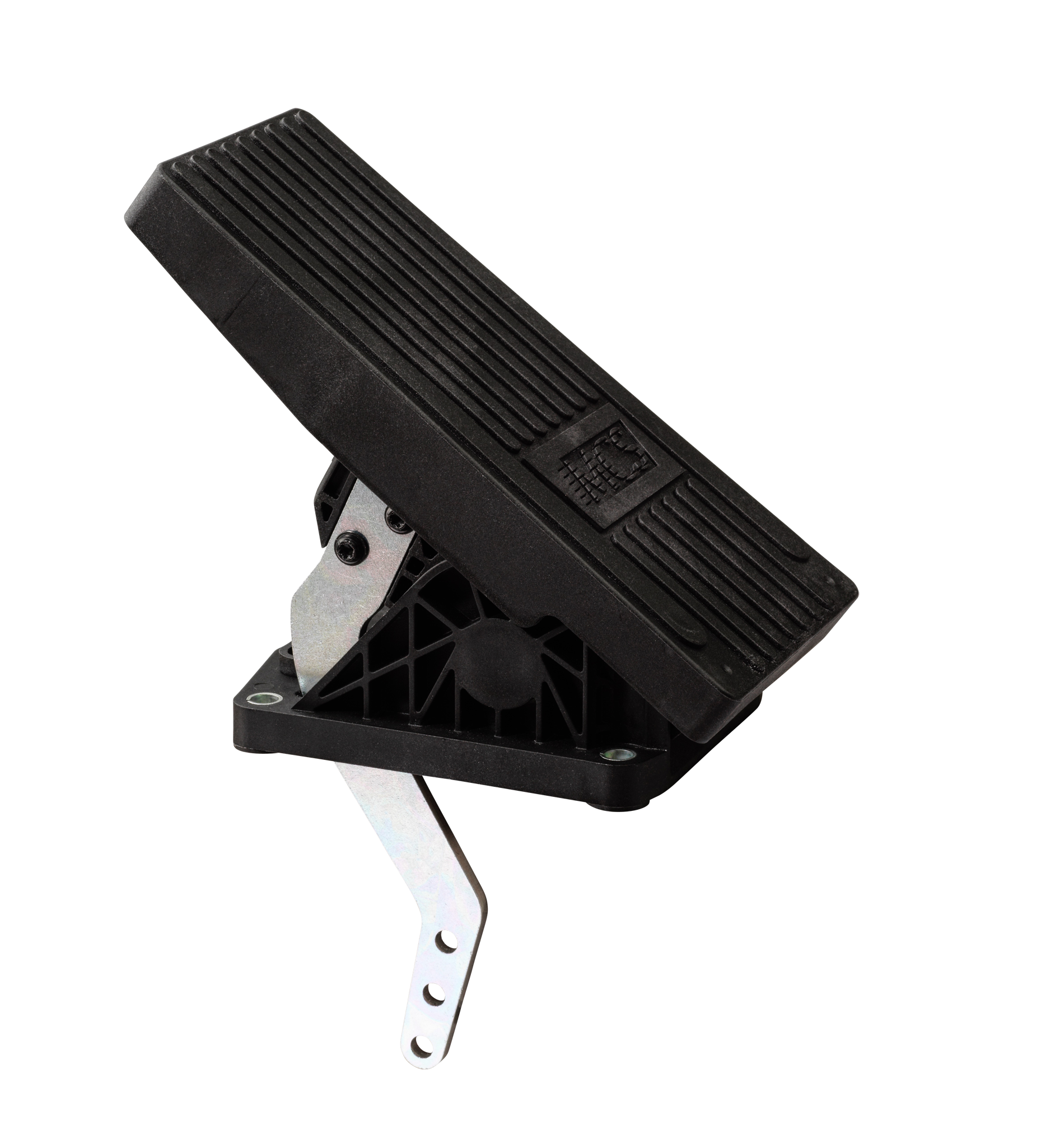

– Swivel arm
– Travel angle : 18° or 22°
– Mechanical kick-down
– CAN J1939
– Connector kit or customised wire harness
